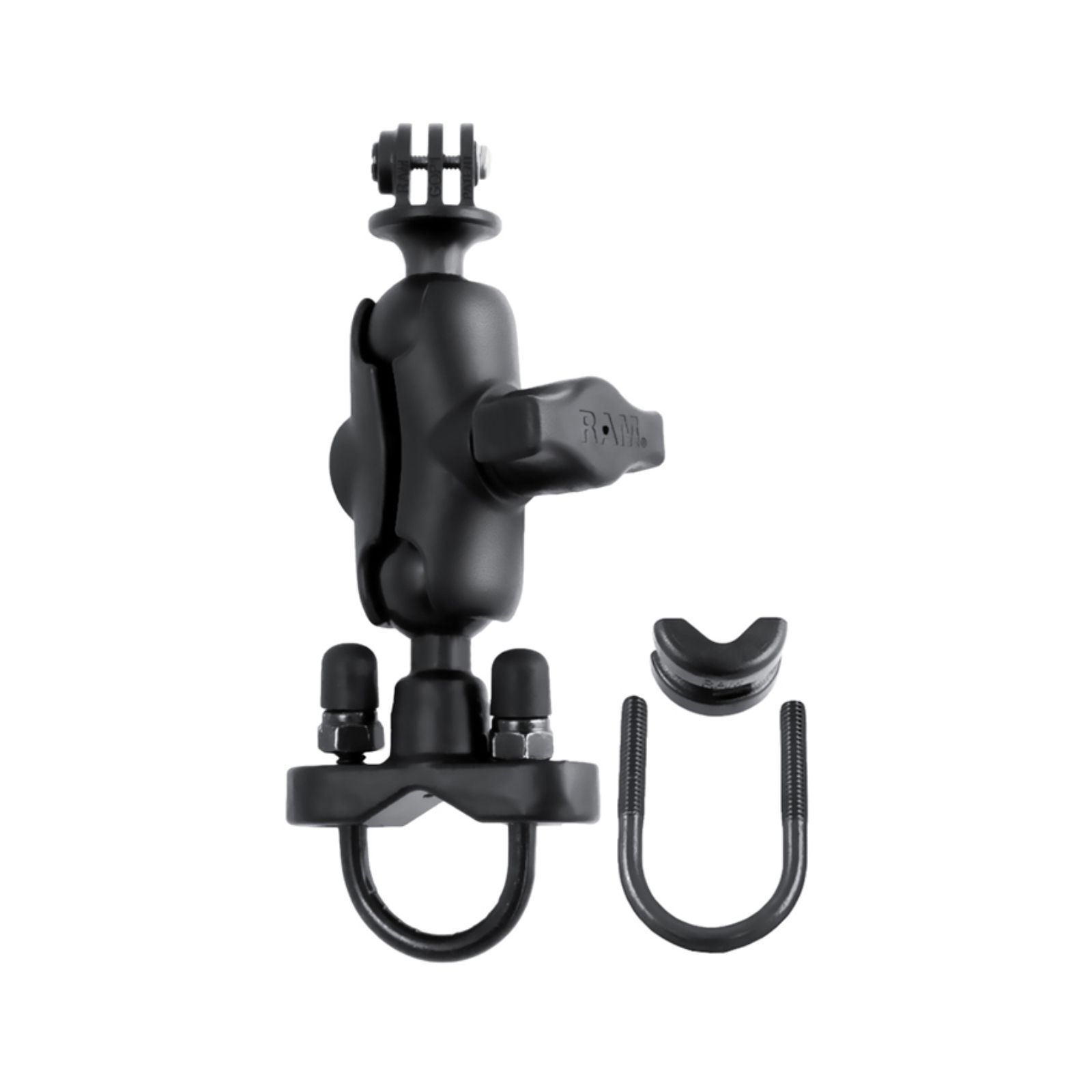

The RAM-B-149Z-A-GOP1 consists of a zinc coated u-bolt base, SHORT size double socket arm and 1" diameter ball with custom GoPro® Hero adapter. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5".

Specifications:

  • CLAMP RANGE: 0.5" (12.7mm) - 1.25" (31.7mm) diameter
  • SOCKET-TO-SOCKET LENGTH: 1.75" (44.4mm)
  • BALL SIZE: B Size (1", 25.4mm)

Hardware Included:

  • x1 1/4"-20 U-Bolt for .5" - 1" Rails
  • x1 1/4"-20 U-Bolt for 1" - 1.25" Rails
  • x2 1/4"-20 Nylock Nuts
  • x2 Rubber Caps
  • x1 U-Bolt Spacer
SKU RAMB149ZAGOP1_1
Brand RAM
Shipping Weight 0.3400kg
