RMSTATOR is specialized in designing and manufacturing innovative electrical and electronic components for Powersports vehicles like motorcycles, ATV, SxS, UTV, snowmobiles, and PWC. Through unrelenting quality control, we ensure that each component meets or exceeds the OEM specs. With over 25 product families, rest assured that you will find the part you need.

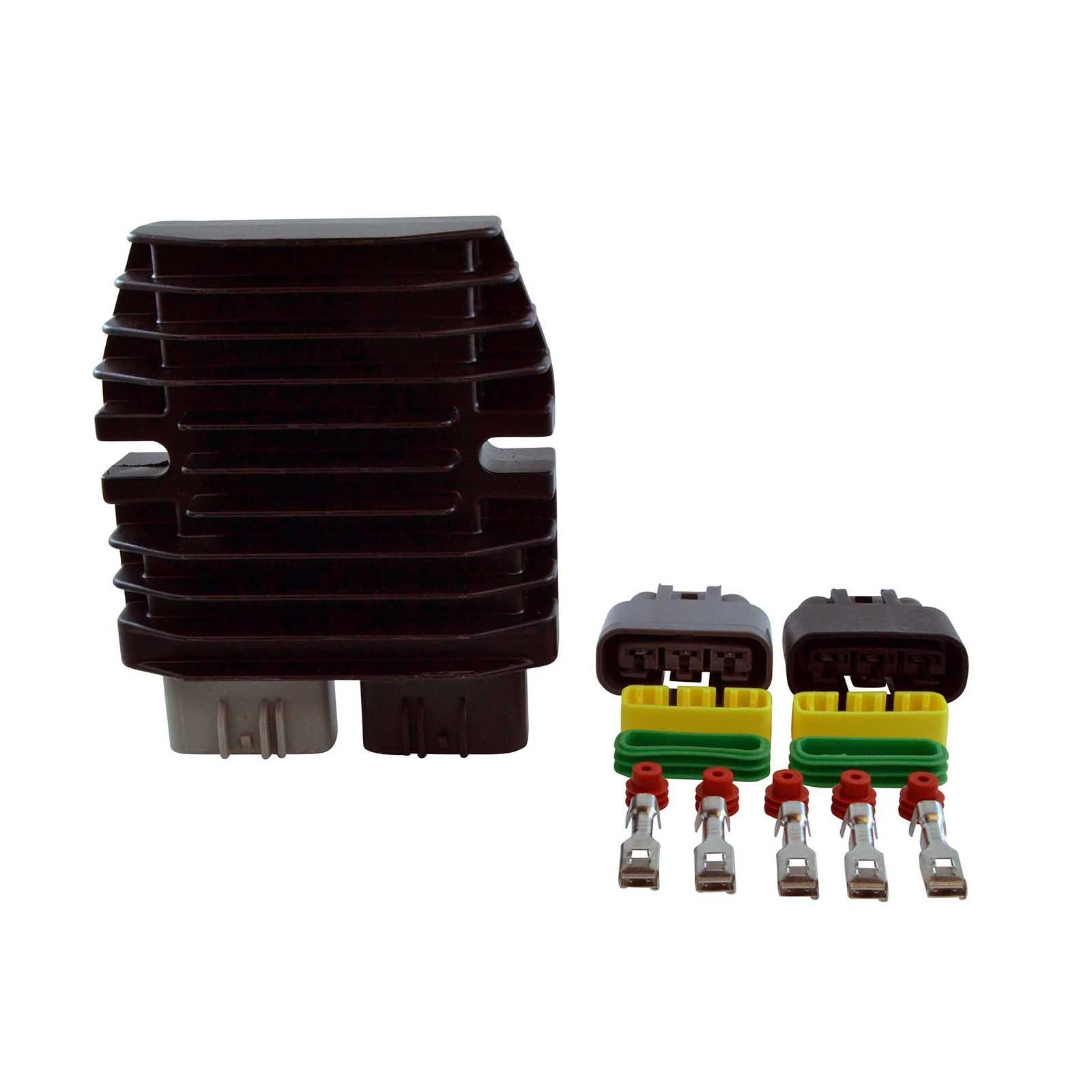

STOP BURNING YOUR REGULATOR RECTIFIER! It is time to update or replace your voltage regulator with RMSTATOR's advanced MOSFET technology. RM STATORS MOSFET Regulators run cooler than all OEM diode-style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • The quality exceeds the OEM equipment
  • Improved heat sink and charging capabilities
  • Higher grade of electric components

What are the advantages of the MOSFET Technology?

  • Runs much cooler than the traditional Shunt voltage regulator rectifier
  • Less load on the stator, less work, less fuel is used and you save
  • The power charging your battery is steadier and smooth
  • Extends the battery’s life and cold-cranking capacity
  • Removes stator load resulting in more engine power
  • Optimize power delivery by switching the stator coils on or off

Dimensions:

  • Width: 94 mm
  • Length: 114 mm
  • Height: 32 mm
  • Fixation holes center to center: 74 mm

Other specifications:

  • Number of plugs: 2
  • Number of pins: 5
  • Minimum Charging Voltage: 14.0 V ± 0.2 V DC
  • Maximum Charging Current: 50 A / 500 W
  • Operation Temperature: -20° to 85°

NOTE: Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

  1. All electrical components must be fitted by a qualified technician.
  2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
  3. The absence of either of points 1 or 2 above, will void any warranty.
  4. There are multiple regulators possible for some Triumph models. Please take a look at the list below to see if your triumph model is there, if so if it's the right part:
    • Bonneville from 2017 to 2020 with a VIN Lower than 513324. If you have a HIGHER VIN you should look for parts # RM30405 / RMS020-103436
    • Street Triple Standard 2008 to 2017 This part will only fit on Street Triple Standard with a VIN higher than 456777. For models with a VIN BETWEEN 354282 and 456776, please refer to part # RM30104, and for models with VIN lower than 354281, please refer to OEM T1300570
    • Street Triple 1994 to 2018: This part will only fit on Street Triple with a VIN higher than 499574 and a Non-ABS version or higher than 499957 and an ABS version. If your vehicle has a VIN between 210445 and 461331, please refer to OEM T1304045. If your vehicle has a VIN between 461332 and 499573 and a non-ABS version, refer to OEM T1300165. If your vehicle has a VIN between 461332 and 499956 and an ABS version, refer to OEM T1301564. If your vehicle has a VIN BETWEEN 141872 and 210444, refer to part # RM30507 / RMS022-106230. If your vehicle has a VIN lower than 141871, please refer to OEM T1300021. If your vehicle has a carburetor, please refer to part # RM31000.
    • Street Triple 2019 to 2020 This part will only fit on Street Triple Standard with a VIN higher than 456777. For models with a VIN BETWEEN 354282 and 456776, please refer to part # RM30104, and for models with VIN lower than 354281, please refer to OEM T1300570
    • Street Triple R 2008 to 2020 This part will only fit on Street Triple R with a VIN higher than 456777. If your vehicle has a VIN BETWEEN 354282 and 456776, please refer to part # RM30104.
    • Other Triumph models in the fitments list below that are not mentioned before are a direct fit and do not have any restrictions.
SKU RMS023106203_236
Brand RMSTATOR
Shipping Weight 0.4900kg
