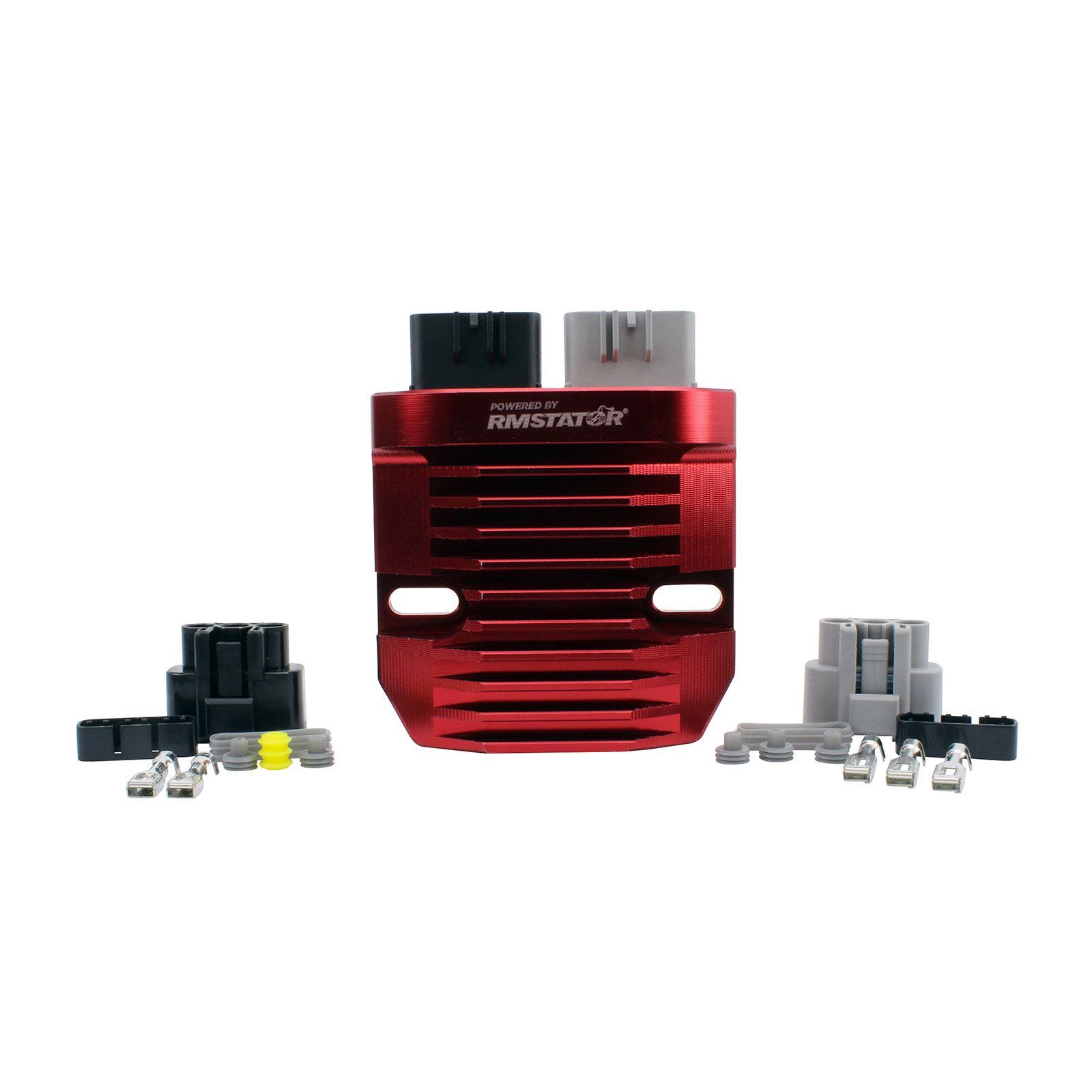

Our new RMSTATOR machined aluminum Mosfet voltage regulator is a great upgrade for heat dissipation in any Powersports charging system. After 10 minutes of use, our billet aluminum heatsink runs cooler by 33% than standard cast regulator housings. Our new RMSTATOR red regulator, equipped with the renowned Mosfet regulation technology, is an added value to any three-phase permanent magnet charging system.

It runs cooler than all OEM diode-style regulators. In addition, this rectifier has to overheat protection, rather than burn up, it will simply turn off for a while and cool off.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• The quality exceeds the OEM equipment
• Improved heat sink and charging capabilities
• Higher grade of electric components
• All shipped products are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause of repetitive electrical issues.

What are the advantages of the MOSFET Technology?

• Runs much cooler than the traditional Shunt voltage regulator rectifier
• Less load on the stator, less work, less fuel is used and you save
• The power charging your battery is steadier and smooth
• Extends the battery’s life and cold-cranking capacity
• Removes stator load resulting in more engine power
• Optimize power delivery by switching the stator coils on or off

Dimensions:

• Width: 103 mm
• Length: 103 mm
• Height: 28 mm
• Fixation holes center to center: 80 mm

Other specifications:

• Number of plugs: 2
• Number of pins: 5
• Number of wires: 0
• Minimum Charging Voltage: 14.5 V +- 0.5 V
• Maximum Charging Current: 50 A / 500 W
• Open Circuit Voltage: 15 V
• Operation Temperature: -20°C to 85°C

NOTE: Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Please Note:

1. All electrical components must be fitted by a qualified technician.
2. Before fitting electrical components ensure the root cause of the original failure has been addressed.
3. The absence of either of points 1 or 2 above, will void any warranty.
4. There are multiple regulators possible for some Triumph models. Please take a look at the list below to see if your triumph model is there, if so if it's the right part:
• Bonneville from 2017 to 2020 with a VIN Lower than 513324. If you have a HIGHER VIN you should look for parts # RM30405 / RMS020-103436
• Street Triple Standard 2008 to 2017 This part will only fit on Street Triple Standard with a VIN higher than 456777. For models with a VIN BETWEEN 354282 and 456776, please refer to part # RM30104 and for models with VIN lower than 354281, please refer to OEM T1300570
• Street Triple 1994 to 2018 : This part will only fit on Street Triple with a VIN higher than 499574 and a Non ABS version or higher than 499957 and a ABS version. If you vehicle has a VIN between 210445 and 461331, please refer to OEM T1304045. If your vehicle has a VIN between 461332 and 499573 and a non ABS version, refer to OEM T1300165. If your vehicle has a VIN between 461332 and 499956 and a ABS version, refer to OEM T1301564. If you vehicle has a VIN BETWEEN 141872 and 210444, refer to part # RM30507 / RMS022-106230. If you vehicle has a VIN lower than 141871, please refer to OEM T1300021. If your vehicle has a carburator, please refer to part # RM31000.
• Street Triple 2019 to 2020 This part will only fit on Street Triple Standard with a VIN higher than 456777. For models with a VIN BETWEEN 354282 and 456776, please refer to part # RM30104 and for models with VIN lower than 354281, please refer to OEM T1300570
• Street Triple R 2008 to 2020 This part will only fit on Street Triple R with a VIN higher than 456777. If your vehicle has a VIN BETWEEN 354282 and 456776, please refer to part # RM30104.
• There are two possible regulators for the Can-Am Outlander 1000 2012 and many Outlander Max 500 models. This regulator fits mostly the North American versions of these models. For the European / International versions, the right regulator is part RM30322
